Outdoor Cleaning Tools Window Cleaning Electric Solar Panel Washer

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.
ZTGD
Clean Type
High Pressure Cleaning
Cleaning Process
Cold Water Cleaning
Control
PLC
Fuel
Electric
Power Mode
Lithium Batteries, Rechargeable Photovoltaic Panels
Network Access
4G
Anti Fall Function
Support
Product Description
Renewable Solar Panel Cleaning Machine is an intelligent stationary cleaning robot, primarily designed for the component cleaning of large and medium-sized photovoltaic power stations. It can be installed dry on the photovoltaic modules to perform automatic cleaning. The robot features both automatic and manual control modes, with the manual mode supporting remote control. It utilizes a waterless cleaning technology that relies on the high-speed rotation of brush rolls to complete the cleaning, making it suitable for most types of pollutants.

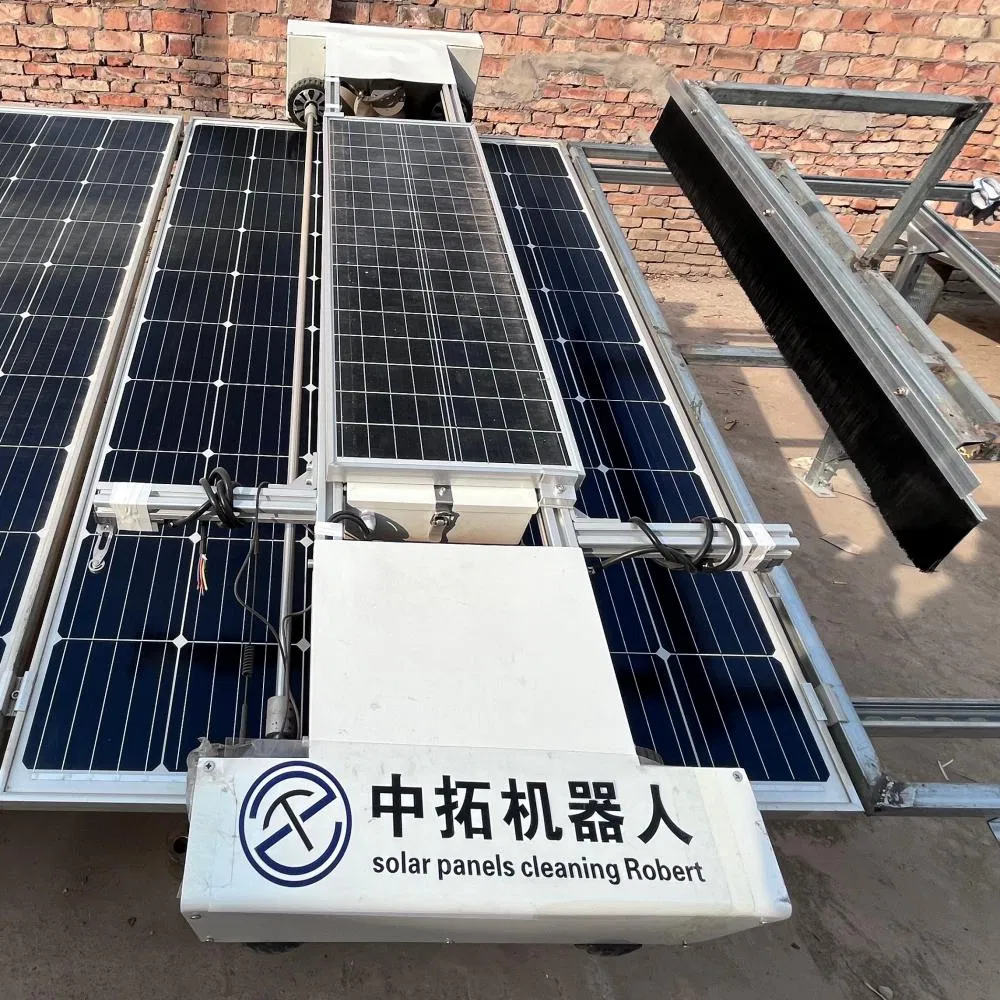

Solar Panel Washer

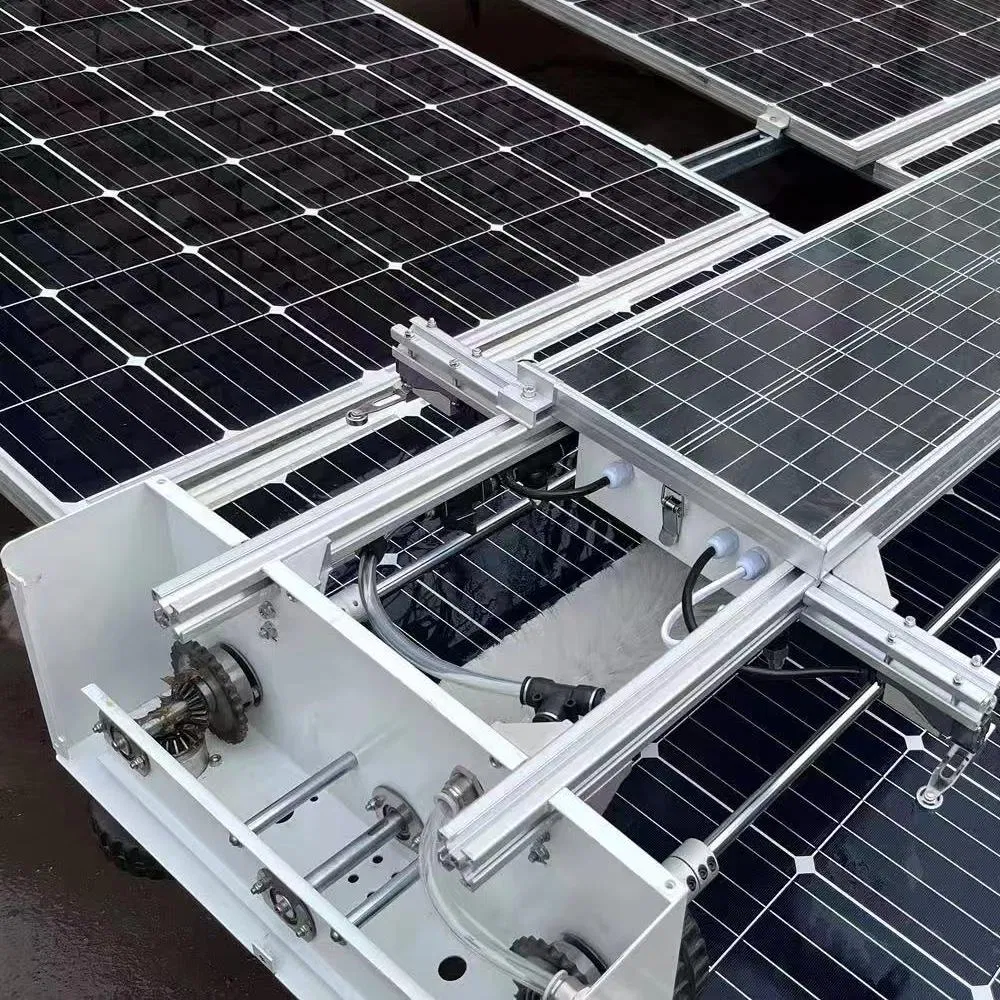

Electric Solar Panel Cleaner
Technical Parameter
Product ModelZTG-3310
Product NameRemote control crawler photovoltaic cleaning robot
Standard Width400 mm
Rechargeable PV Panel Power50W/24V
Battery Power24V/10A
Charging Time4-5 hours
Motor Power90 W
Cleaning Speed14m/min
Max One-way Distance600 m
Working Temperature-20 ~ 80ºC
Control ModeAutomatic, manual, remote control
Control PlatformRemote service platform + mobile APP
Key Advantages
High cleaning efficiency and intelligence level.
Self-powered via solar generation, charging, and storage.
Strong adaptability to various terrains and environments.
Automatic speed stabilization to match brush motor speed.
Waterproof, dustproof, and fogproof for all-weather work.
Standardized components for easy transport and installation.

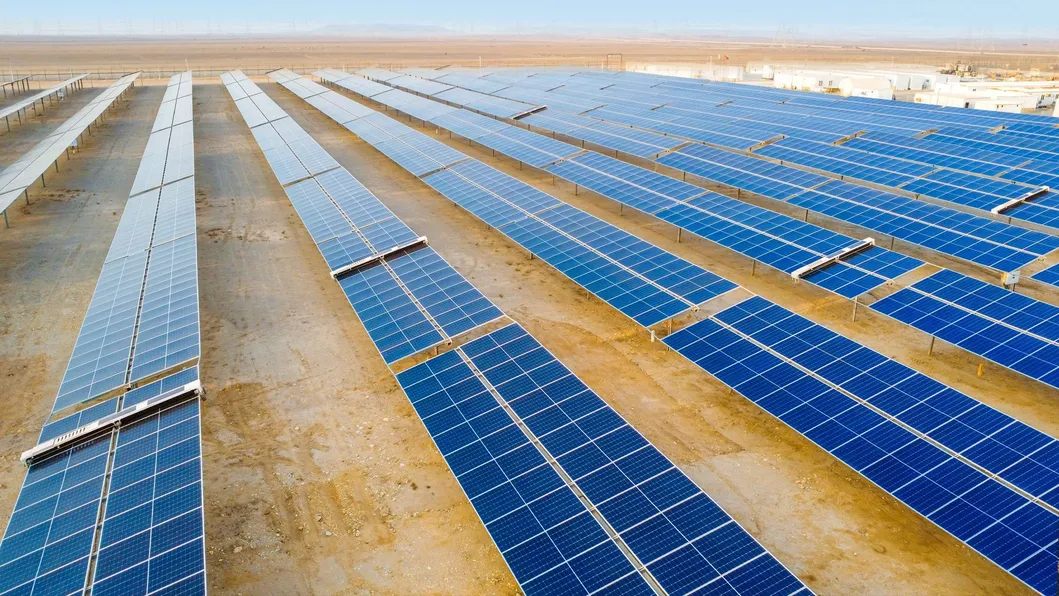

Harsh Environment Cleaning
Anti Fall Function
Intelligent Anti-fall System
The anti-fall system is equipped with 4 high-precision sensors on the front and rear ends. When it moves to the edge area of the photovoltaic panel, it will automatically stop and the drop detection indicator light will light up, effectively avoiding the risk of falling.

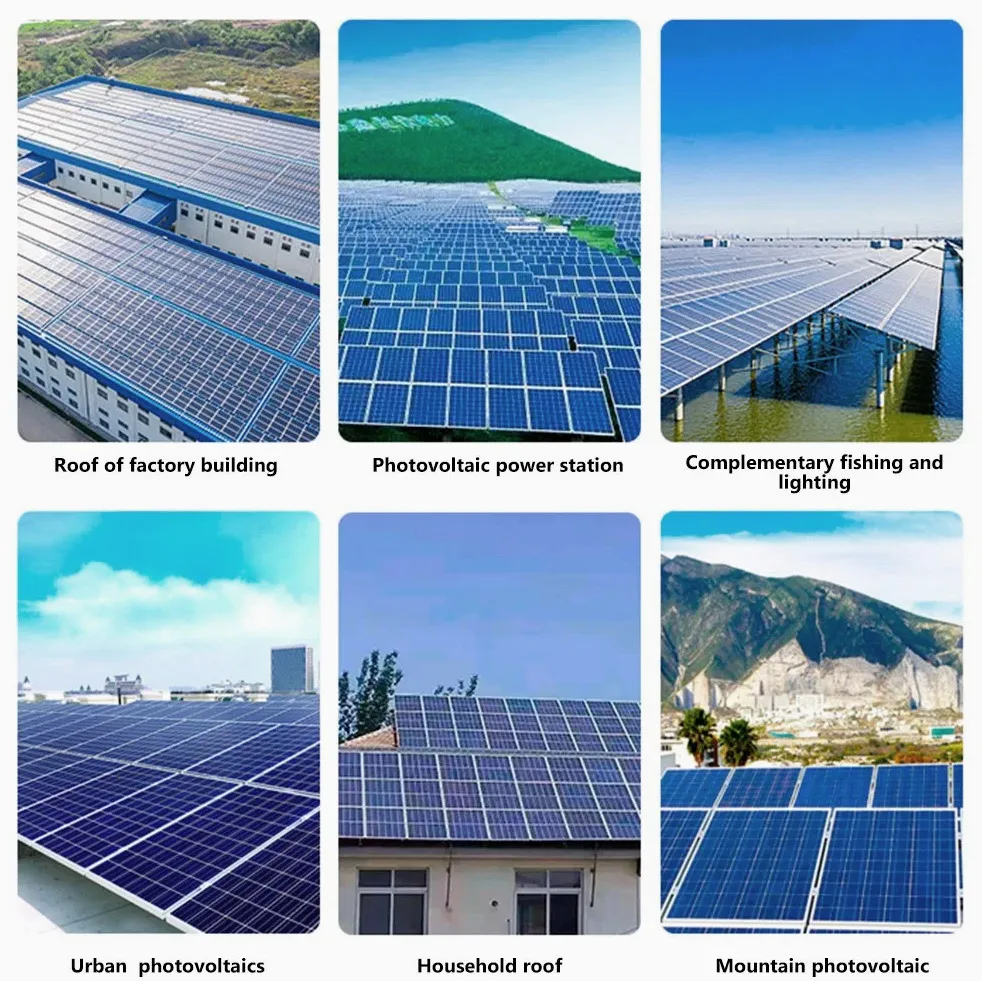

Robot Application
REMOTE CONTROL 250M
Uses imported radio frequency technology for stable signal and strong anti-interference up to 250 meters.
1100MM ROLLER BRUSHES
Equipped with 1100mm soft nylon brushes, ensuring high cleaning efficiency (1.2MW/day) without damaging panels.
Professional Solutions
A high-tech enterprise founded by senior management teams of well-known robot enterprises. The goal is to provide feasible dry cleaning brush solutions for solar panels in remote areas and deserts, solving efficiency reduction caused by pollution.
Production Facility
Certifications
Packaging & Shipping
Packing Details
Packing List
  • Main unit & Remote control
  • Two lithium batteries (24/26Ah)
  • Two 24V 3A battery chargers
  • Lithium-ion battery backpack
  • Spare tool accessories
Frequently Asked Questions
Will the robot hit walls or obstacles during operation?
Under normal circumstances, this will not happen. Manual operations are controlled by trained users, and the fully automatic system is controlled by induction sensors to prevent collisions.
Can the equipment work on rainy days?
Fully automatic equipment can operate on rainy days. However, human-operated cleaning is not recommended during rain to ensure operator safety from lightning and slippery conditions.
Why use crawler tracks for the robot?
The crawler tracks provide high cleaning friction and superior stability, ensuring a better cleaning effect even on tilted panels.
What are the main advantages over competitors?
Our equipment is defined by three core values: high efficiency, extreme durability, and reliability in harsh environments.
How can we tell if the panels need cleaning?
Large areas of debris or dirt can be monitored via your photovoltaic power generation system; a drop in power output typically indicates the need for cleaning.
What is the technical advantage of your dry cleaning?
Our robot supports high-speed dry cleaning with the highest efficiency and cleanliness standards in the industry, making it ideal for water-scarce regions.
